chaff-cutter-gokul-7plus

GOKUL-7 PLUS

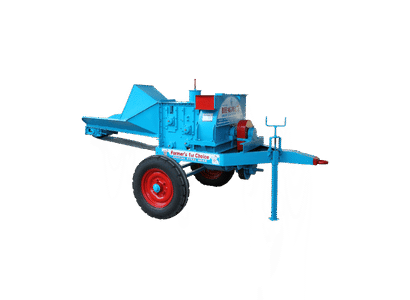

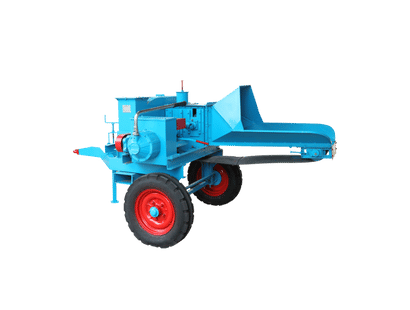

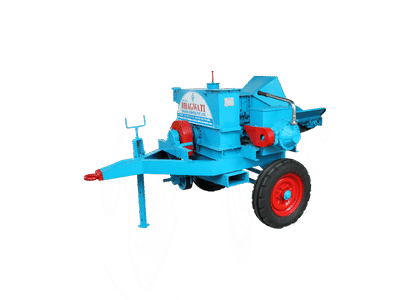

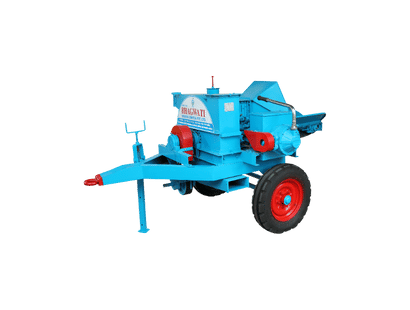

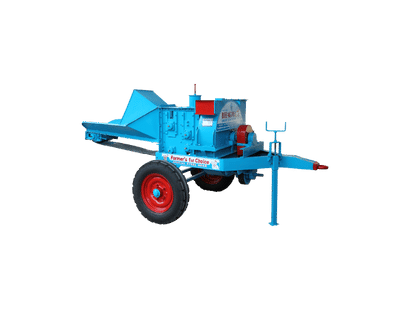

GOKUL-7 PLUS (Tractor-PTO Operated) is a robust chaff cutter designed for high-output and continuous farm operations. Powered by tractor PTO, it delivers efficient, uniform cutting for fast and large-scale fodder processing.

Product Details :

Dimensions	L: 3048mm, W: 1650mm, H: 1575mm
Power Unit	Tractor PTO, 35 HP and above
Number of Blades	4 Blades (3 Rotating Blades, 1 Fixed)
Capacity	1000 - 5000 kg/hr

SPECIFICATION	WINNOWING FAN : BKUPFAN1
Dimensions	L: 865mm, W: 690mm, H: 1660mm
Power Unit	0.5 HP Single Phase Motor
Motor Speed	1500 RPM
Safety	Comes with Safety Guard

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-7 PLUS (Tractor – PTO Operated)
Dimensions	L: 3048mm, W: 1650mm, H: 1575mm
Power Unit	Tractor PTO, 35 HP and above
Number of Blades	4 Blades (3 Rotating, 1 Fixed)
Capacity	1000 – 5000 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	POWER PACK
Dimensions	L: 100mm, W: 450mm, H: 825mm
Power Unit	3 H.P. Motor (2800 RPM)
Number of Blades	4 Blades
Capacity	400 – 600 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-12
Dimensions	L: 1448mm, W: 1270mm, H: 1389mm
Power Unit	Single Phase 1.0 HP Motor (1440 RPM)
Number of Blades	3 Blades (2 Rotating, 1 Fixed)
Capacity	250 – 350 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-15 PLUS
Dimensions	L: 1650mm, W: 965mm, H: 1168mm
Power Unit	Single Phase 3.0 HP Motor (1440 RPM)
Number of Blades	3 Straight Blades
Capacity	1000 – 1500 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-15
Dimensions	L: 1650mm, W: 965mm, H: 1168mm
Power Unit	Single Phase 3.0 HP Motor (1440 RPM)
Number of Blades	3 Straight Blades
Capacity	1000 – 1500 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-1 PLUS
Dimensions	L: 1625mm, W: 812mm, H: 965mm
Power Unit	Single Phase, 2.0 HP Electrical Motor, 1440 RPM, 50 Hz, 220V
Number of Blades	3 Blades (2 Rotating, 1 Fixed)
Capacity	800 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-9 PLUS	GOKUL-10 PLUS
Dimensions	L: 1780mm, W: 1092mm, H: 1270mm	L: 1780mm, W: 1194mm, H: 1270mm
Power Unit	Single Phase, 2.0 HP Electrical Motor, 1440 RPM, 50 Hz, 220V	Single Phase, 3.0 HP Electrical Motor, 1440 RPM, 50 Hz, 220V
Number of Blades	3 Blades (2 Rotating, 1 Fixed)	3 Blades (2 Rotating, 1 Fixed)
Capacity	1000 kg/hr	1500 kg/hr

*Specification and design is subject to change without prior notice.

SPECIFICATION	GOKUL-2	GOKUL-2 PLUS
Dimensions	L: 1780mm, W: 1625mm, H: 1448mm	L: 1780mm, W: 1625mm, H: 1448mm
Power Unit	Single Phase, 2.0 HP Electrical Motor, 1440 RPM, 50 Hz, 220V	Single Phase, 2.0 HP Electrical Motor, 1440 RPM, 50 Hz, 220V
Number of Blades	3 Blades (2 Rotating, 1 Fixed)	3 Blades (2 Rotating, 1 Fixed)
Capacity	1000 kg/hr	1000 kg/hr

*Specification and design is subject to change without prior notice.
